Product Description

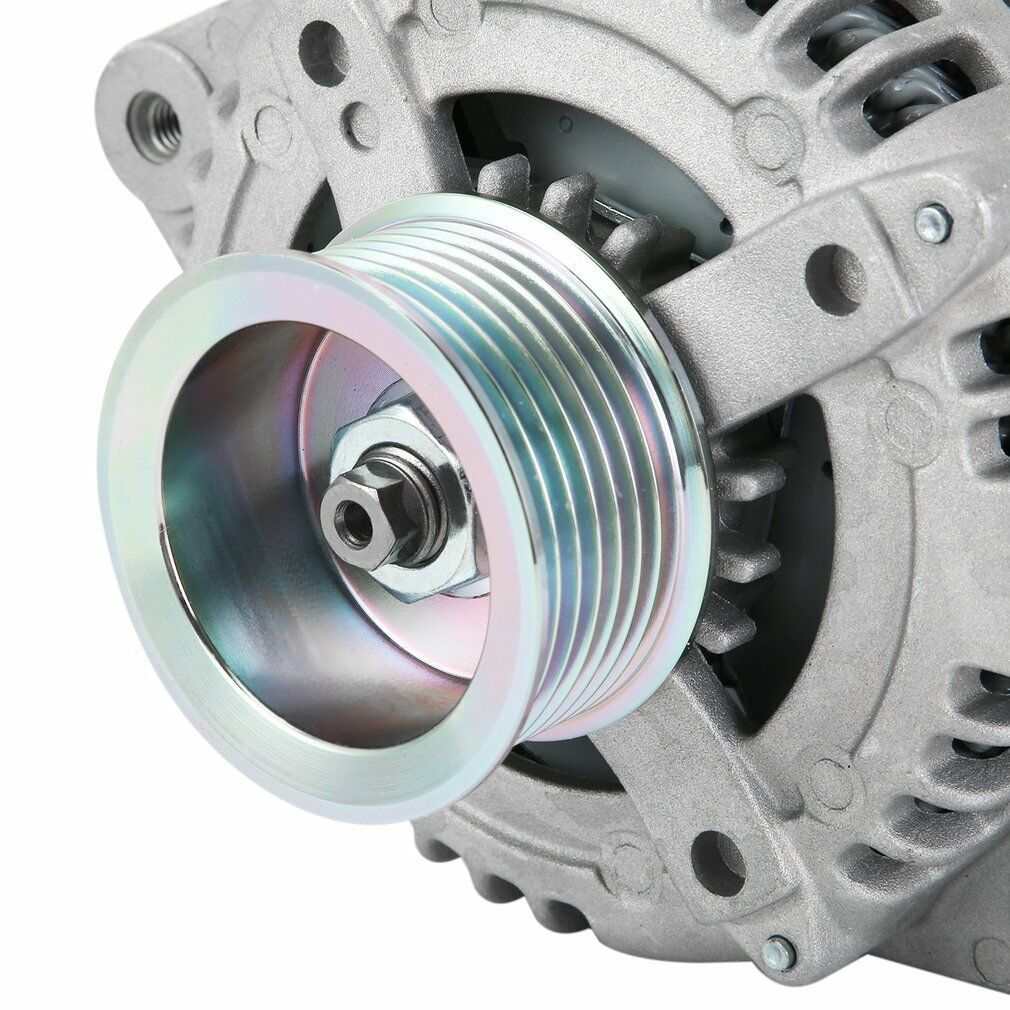

PREMIUM ALTERNATOR FOR TOYOTA LANDCRUISER PRADO KDJ120 1KD-FTV 3.0L DIESEL 2006-2016
BRAND NEW
MADE BY TOP MANUFACTURER
HIGH QUALITY
1 YEAR WARRANTY
QUALITY GUARANTEE
ANY INQUIRIES CALL 0430001243
Some products have free shipping depending on your postcode, contact us to check
We sell great range of auto parts, contact us to check.
Features:
12V, 130A, internal regulated, 7PV Clutch Pulley
Direct fit, No modifications Required.
Quality: ROHS; ISO/TS16949; ISO9001:2008.
Oem Fit and Design
Suit:
For Toyota Hi-Ace KDH220, KDH222 engine 2KD-FTV 2.5L Diesel 05-16;
For Toyota Hi-Ace KDH201, KDH221, KDH223 engine 1KD-FTV 3.0L Diesel 05-16;
For Toyota Hi-Lux KUN16, KUN26, KZN156, KUN167 Turbo engine 1KD-FTV 3.0L Diesel 05-16;
For Toyota Landcruiser Prado KDJ120 engine 1KD-FTV 3.0L Diesel 06-16.
Model | Series | Engine | Years (mm/yy) | |
---|---|---|---|---|
ForToyota |
Hiace |
KDH200 |
2.5L Turbo Diesel - 2KD-FTV |
08/2004 - 07/2006 |
ForToyota |
Hiace |
KDH201 |
3.0L Turbo Diesel - 1KD-FTV |
08/2006 - Onwards |
ForToyota |
Hiace |
KDH220 |
2.5L Turbo Diesel - 2KD-FTV |
08/2004 - 07/2006 |
ForToyota |
Hiace |
KDH221 |
3.0L Turbo Diesel - 1KD-FTV |
08/2006 - Onwards |
ForToyota |
Hiace |
KDH222 |
2.5L Turbo Diesel - 2KD-FTV |
08/2004 - 07/2006 |
ForToyota |
Hiace |
KDH223 |
3.0L Turbo Diesel - 1KD-FTV |
08/2006 - Onwards |
ForToyota |
Hilux |
KUN16 |
3.0L Turbo Diesel - 1KD-FTV |
02/2005 - 06/2015 |
ForToyota |
Hilux |
KUN26 |
3.0L Turbo Diesel - 1KD-FTV |
02/2005 - 06/2015 |
ForToyota |
Landcruiser Prado |
KDJ120 |
3.0L Turbo Diesel - 1KD-FTV |
11/2006 - 10/2009 |
ForToyota |
Landcruiser Prado |
KDJ150 |
3.0L Turbo Diesel - 1KD-FTV |
11/2009 - 05/2015 |
ForToyota |
Landcruiser Prado |
KDJ155 |
3.0L Turbo Diesel - 1KD-FTV |
11/2009 - 05/2015 |
Specifications:
Adj. Hole Dia. |
Piv. Hole Dia. |
Adj. Hole to Piv. Hole |
Piv. Lug. Length |
Inside Ft. to Ft. |
Pulley Dia. |
Pulley Type |
1xM8 |
1x10 |
165 |
58 |
N/A |
63 |
7PV Clutch |
Replace:
OEM | REFERENCE | |
---|---|---|
OF DENSO | 1042103410 | |
OF DENSO | 1042103411 | |
OF DENSO | 1042105440 | |
OF LUCAS | LRA03067 | |
OF LUCAS | LRA3067 | |
OF TOYOTA | 2706030060 | |
OEM | REFERENCE | |
OF BOSCH | 0124315033 | |
OF BOSCH | 0124315034 | |
OF DENSO | 1022112310 | |
OF DENSO | 1022112810 | |
OF DENSO | 1042104460 | |
OF DENSO | 1042108020 | |
OF DENSO | 1042108240 | |
OF DENSO | 1042108241 | |
OF DENSO | 1042109010 | |
OF DENSO | 1042109011 | |
OF DENSO | 1042109340 | |
OF LUCAS | LRA02317 | |
OF LUCAS | LRA2317 | |
OF TOYOTA | 270600L020 | |
OF TOYOTA | 270600L021 | |
OF TOYOTA | 270600L030 | |
OF TOYOTA | 270600L040 | |
OF TOYOTA | 2706030010 | |
OF TOYOTA | 2706030040 | |
OF TOYOTA | 2706030050 | |
OF TOYOTA | 2706030080 | |
OF TOYOTA | 2706030120 | |
OF TOYOTA | 2706030150 | |
OF TOYOTA |
2706030151 |
